Relative URLs

The general format of a simple URL:

http://www.website.com/catalog/usa/texas/dallas/products.html

Parts:

• Scheme: http://
• Host: www.website.com
• Path: /catalog/usa/texas/dallas/products.html

Examples of Full URLs:

• http://www.mmlab2.rlc.dcccd.edu/
• http://www.mmlab2.rlc.dcccd.edu/advweb2/
• http://www.mmlab2.rlc.dcccd.edu/advweb2/index.html

Examples of Relative URLs:

• /IMED1416/
• ../images/dog.gif
• ../../../../../../../../../../../../../../../../../../../../../menu.html

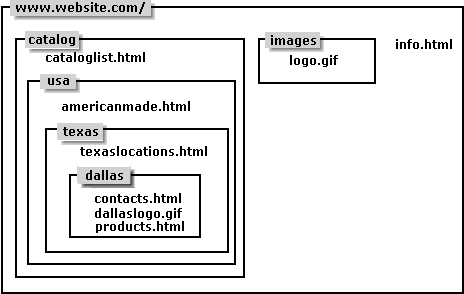

Our imaginary web site:

In the products.html file, if we wanted:

• Link to "contacts.html" in /catalog/usa/texas/dallas
• Link to "texaslocations.html" in /catalog/usa/texas
• Link to "americanmade.html" in /catalog/usa
• Link to "cataloglist.html" in /catalog
• Link to "info.html" in /
• Use image "dallaslogo.gif" in /catalog/usa/texas/dallas
• Use image "logo.gif" in /images

Solution #1:

• a href="http://www.website.com/catalog/usa/texas/dallas/contacts.html"
• a href="http://www.website.com/catalog/usa/texas/texaslocations.html"
• a href="http://www.website.com/catalog/usa/americanmade.html"
• a href="http://www.website.com/catalog/cataloglist.html"
• a href="http://www.website.com/catalog/info.html"
• img src="http://www.website.com/catalog/usa/texas/dallas/dallaslogo.gif"
• img src="http://www.website.com/images/logo.gif"

Problems with Solution #1

• What if your host name changes to www.catalog.website.com?
  You have to go back and change every single URL!
• What if the catalog directory has to be moved to a directory called morestuff?
  You have to change url from
       http://www.website.com/catalog/.... to
       http://www.website.com/morestuff/catalog/....
• You can't develope your site on a local workstation since all links will be sending to the web rather than your local machine.

Solution #2:

• Leave out the host name since any links or images will be fetched from the same host as the original html document.

  SO:
• a href="/catalog/usa/texas/dallas/contacts.html"
• a href="/catalog/usa/texas/texaslocations.html"
• a href="/catalog/usa/americanmade.html"
• a href="/catalog/cataloglist.html"
• a href="/catalog/info.html"
• img src="/catalog/usa/texas/dallas/dallaslogo.gif"
• img src="/images/logo.gif"

  When a URL begins with a "/" it is assumed to come from the same server and it will start looking for the file from the top of the directory structure. If you using the url "catalog/usa/texas/dallas/contacts.html" if would assume that the catalog directory was in the dallas directory.

Problems with solution #2

• What if the catalog directory has to be moved to a directory called morestuff?
  You have to change url from
       /catalog/.... to
       /morestuff/catalog/....
• You can't develope your site on a local workstation since a url beginning with "/" doesn't mean anything for getting the file off the local harddisk (you'd think it would look to the root directory of the local harddisk but it doesn't!)

Solution #3 - The Best Approach

• Use relative URLS where "../" means look in the higher directory:
• a href="contacts.html"
• a href="../texaslocations.html"
• a href="../../americanmade.html"
• a href="../../../cataloglist.html"
• a href="../../../../info.html"
• img src="dallaslogo.gif"
• img src="../../../../images/logo.gif"

These files and directories are at the same levels:

• catalog   images   info.html
• usa   cataloglist.html
• texas   americanmade.html
• dallas   texaslocations.html
• contacts.html    dallaslogo.gif   products.html

As an additional exercise:

To link to the texaslocations.html from each of the directories the relative URL would be:
